13% off

NeuroTrac® Simplex Single Channel EMG unit

$599.95 $690.00

or 4 interest-free payments of $149.99 with

SKU: NSIMP
8 in stock

NSIMP

Tracked delivery
Every order tracked, no exceptions
Discreet packaging
Private, secure delivery every time
Physiotherapist-approved
Every product reviewed before we stock it
View details
Product details

NSIMP
Technical specifications

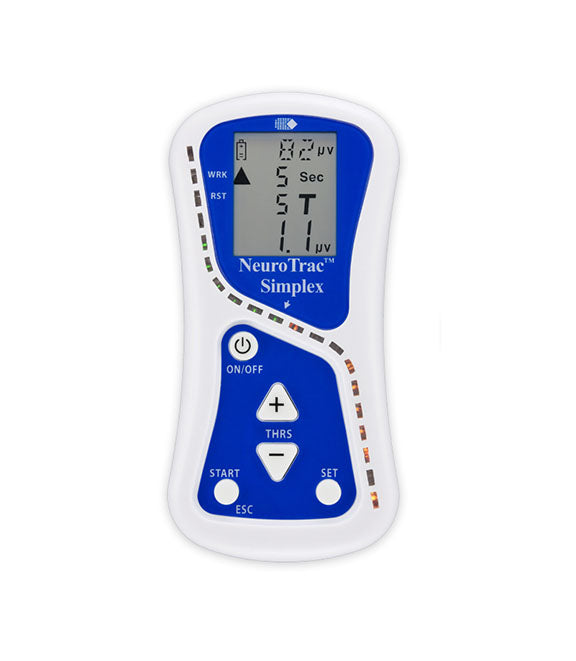

NeuroTrac® Simplex Single Channel EMG unit

 EMG

  • Single Channel
  • EMG Range: 0.2 to 2000 uV RMS (continuous)
  • Sensitivity: 0.l uV RMS
  • Accuracy: 4% of uV reading +/-0.3 uV at 200 Hz
  • Selectable Bandpass filter - 3db Bandwidth,

    a. Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% - Reading below 235 microvolts 10 Hz +/-3 Hz to 370 Hz +/- 10% - Readingabove 235 microvolts
    b. Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%

  • Notch filter: 50 Hz (Canada 60Hz) - 33 dbs (0. 1% accuracy)
  • Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz
  • Battery: PP3 Alkaline
  • Work / Rest periods: 2-99 seconds
  • Number of Trials: 1-99


Low battery indication at 7.4 volts +/- 0.2 volts and automatic shut off 4 minutes after pressing last key, unless infra-red is turned on.Note: Replace battery immediately.


Environmental Conditions for use:
+10 to +30 degrees Centigrade. 0-90% Humidity.
Environmental conditions for storage & transport:
-10 to +50 degrees Centigrade. 0-90% Humidity.
Physical Dimensions: Length 147 mm, Width 70 mm, Depth 28.9 mm

PP3 Alkaline battery

Warranty
2 Years
Additional information
